CLM Product Inc.- Product Specifications

For all campers

Reduces visible impurities†, residual chlorine, odors, and improves taste.

Reduces limescale build-up† in water**

P/N: CLM2-CLM-W-WWC-P

Scale inhibition efficiency ≥ 90%@3L/min, 250ppm hardness spiked water**

Turbidity removal rate ≥60%@3L/min, 15NTU A2 powder spiked water**

Residual chlorine removal rate ≥95%@3L/min, 2±0.2ppm residual chlorine spiked water**

Filter Replacement Component NSF/ANSI 42 certified

CLM2.X housing NSF/ANSI/CAN 61 certified.

†Not performance tested or certified by NSF

** Internal test

Specifications

1. 10" PPC, 1 Micron

2. 10" clear BPA-free PET material housing

3. BPA-free PP material filter head

4. Cycle test: 145psi, 100K cycles

5. Burst pressure: 400psi

6. Water port: female 1/2" NPT inlet and outlet (Double O-ring male 1/2" NPT water port as optional add-on)

7. Dual o-ring design

8. Anti-Rotation Safety Lock

9. FDA material

10. Capacity ≥ 1320 Gallon/5000L (Water quality varies from place to place)

11. Dimension- 4.2” x 13.0” x 4.7” [107mm x 330mm x 120mm]

Note: The initial filtration system flow rate throughout- 2.64 GPM/10 LPM range at 45 psi/0.31 MPa incoming pressure. The flow rate decreases as the filter does its job and becomes clogged with the trapped impurity. The rate of decrease varies by water quality from place to place. When the flow rate decreases noticeably, it is time to replace the filter to maintain optimal water quality and the best user experience.

For all campers

Absorbs chlorine, odor in water, and improves taste

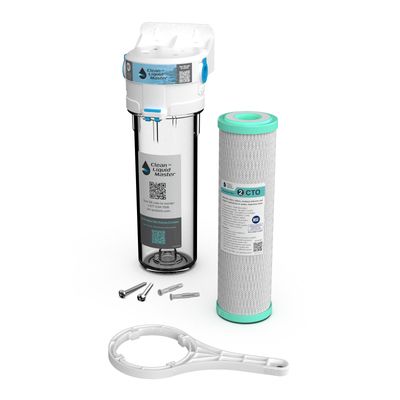

P/N: CLM2-CLM-W-WWC-C

Initial residual chlorine removal rate ≥ 98%**

Filter Replacement Component NSF/ANSI 42 certified

CLM2.X housing NSF/ANSI/CAN 61 certified.

 ** Internal test

Specifications

1. 10" CTO, 2 Micron

2. 10" BPA-free clear PET material housing

3. BPA-free PP material filter head

4. Cycle test: 145psi, 100K cycles

5. Burst pressure: 400psi

6. Water port: female 1/2" NPT inlet and outlet

7. Dual o-ring design

8. Anti-Rotation Safety Lock

9. FDA material

10. Capacity ≥ 1320 Gallon/5000L (Water quality varies from place to place)

11. Dimension- 4.2” x 13.0” x 4.7” [107mm x 330mm x 120mm]

Note: The initial filtration system flow rate throughout- 2.64 GPM/10 LPM range at 45 psi/0.31 MPa incoming pressure. The flow rate decreases as the filter does its job and becomes clogged with the trapped impurity. The rate of decrease varies by water quality from place to place. When the flow rate decreases noticeably, it is time to replace the filter to maintain optimal water quality and the best user experience.

For all campers

Reduces visible impurities†, residual chlorine, odors, and improves taste.

Reduces limescale build-up† in water**

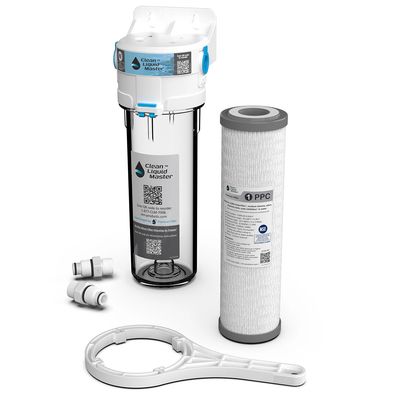

P/N: CLM2.5-CLM-W-WWC-P

Scale inhibition efficiency ≥ 90%@3L/min, 250ppm hardness spiked water**

Turbidity removal rate ≥60%@3L/min, 15NTU A2 powder spiked water**

Residual chlorine removal rate ≥95%@3L/min, 2±0.2ppm residual chlorine spiked water**

Filter Replacement Component NSF/ANSI 42 certified

CLM2.X housing NSF/ANSI/CAN 61 certified.

†Not performance tested or certified by NSF

** Internal test

Specifications

1. 10" PPC, 1 Micron

2. 10" clear BPA-free PET material housing

3. BPA-free PP material filter head

4. Cycle test: 145psi, 100K cycles

5. Burst pressure: 400psi

6. Reinforced lead-free Brass water port: male 1/2" NPT inlet and outlet

7. Dual o-ring design

8. Anti-Rotation Safety Lock

9. FDA material

10. Capacity ≥ 1320 Gallon/5000L (Water quality varies from place to place)

11. Dimension- 6.2” x 13.0” x 4.7” [157mm x 330mm x 120mm]

Note: The initial filtration system flow rate throughout- 2.64 GPM/10 LPM range at 45 psi/0.31 MPa incoming pressure. The flow rate decreases as the filter does its job and becomes clogged with the trapped impurity. The rate of decrease varies by water quality from place to place. When the flow rate decreases noticeably, it is time to replace the filter to maintain optimal water quality and the best user experience.

For all campers

Absorbs chlorine, odor in water, and improves taste

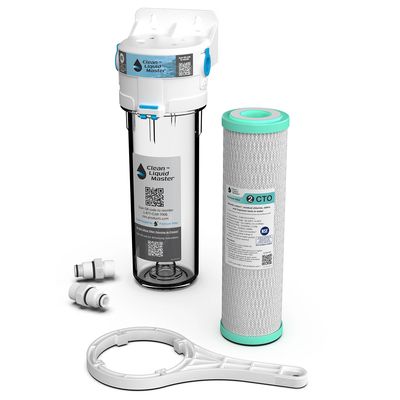

P/N: CLM2.5-CLM-W-WWC-C

Initial residual chlorine removal rate ≥ 98%**

Filter Replacement Component NSF/ANSI 42 certified

CLM2.X housing NSF/ANSI/CAN 61 certified.

 ** Internal test

Specifications

1. 10" CTO, 2 Micron

2. 10" BPA-free clear PET material housing

3. BPA-free PP material filter head

4. Cycle test: 145psi, 100K cycles

5. Burst pressure: 400psi

6. Lead-free Brass water port: male 1/2" NPT inlet and outlet

7. Dual o-ring design

8. Anti-Rotation Safety Lock

9. FDA material

10. Capacity ≥ 1320 Gallon/5000L (Water quality varies from place to place)

11. Dimension- 6.2” x 13.0” x 4.7” [157mm x 330mm x 120mm]

Note: The initial filtration system flow rate throughout- 2.64 GPM/10 LPM range at 45 psi/0.31 MPa incoming pressure. The flow rate decreases as the filter does its job and becomes clogged with the trapped impurity. The rate of decrease varies by water quality from place to place. When the flow rate decreases noticeably, it is time to replace the filter to maintain optimal water quality and the best user experience.

For all campers

Reduces lead, cysts, absorbs chlorine, odor in water, and improves taste

Reduces limescale build-up† in water**

P/N: CLM3-CLM-W-WWC-PCL

Chlorine overall percent reduction: >97.5 %*

Lead overall percent reduction: >99.7 %*

Cyst overall percent reduction: >99.99 %*

Filter Replacement Components NSF/ANSI 42/53 certified.

CLM2.X housing NSF/ANSI/CAN 61 certified (CLM3.X is 3 CLM2.X housings connected in series)

†Not performance tested or certified by NSF

*Data from NSF International test reports

** Internal test

Specifications

1. 1-piece 2mm powder-coated steel structural frame

2. 1st stage- PPC filter, 1-micron PP pleated, carbon block composite filter + scale inhibition**

3. 2nd stage- CTO filter, 2-micron, Chlorine, taste & odor removal

4. 3rd stage- LCB filter, 0.65-micron, lead & cyst removal

5. 10" BPA-free clear PET material housing

6. BPA-free PP material filter head

7. Cycle test: 145psi, 100K cycles

8. Burst pressure: 400psi

9. Water port: female 1/2" NPT inlet and outlet

10. Dual O-ring design

11. Anti-Rotation Safety Lock

12. FDA material

13. Capacity ≥ 1320 Gallon/5000L (Water quality varies from place to place)

14. Dimension- 13.5” x 13.3” x 4.92” [342mm x 338mm x 125mm]

Note: The initial filtration system flow rate throughout- 2.64 GPM/10 LPM range at 45 psi/0.31 MPa incoming pressure. The flow rate decreases as the filter does its job and becomes clogged with the trapped impurity. The rate of decrease varies by water quality from place to place. When the flow rate decreases noticeably, it is time to replace the filter to maintain optimal water quality and the best user experience.

For all campers

Reduces lead, cysts, absorbs chlorine, odor in water, and improves taste

Reduces limescale build-up† in water**

P/N: CLM3.5-CLM-W-WWC-PCL

Chlorine overall percent reduction: >97.5 %*

Lead overall percent reduction: >99.7 %*

Cyst overall percent reduction: >99.99 %*

Filter Replacement Components NSF/ANSI 42/53 certified

CLM2.X housing NSF/ANSI/CAN 61 certified (CLM3.X is 3 CLM2.X housings connected in series)

†Not performance tested or certified by NSF

*Data from NSF International test reports

** Internal test

Specifications

1. 1-piece 2mm powder-coated steel structural frame

2. 1st stage- PPC filter, 1-micron PP pleated, carbon block composite filter + scale inhibition**

3. 2nd stage- CTO filter, 2-micron, Chlorine, taste & odor removal

4. 3rd stage- LCB filter, 0.65-micron, lead & cyst removal

5. 10" clear BPA-free PET material housing

6. BPA-free PP material filter head

7. Cycle test: 145psi, 100K cycles

8. Burst pressure: 400psi

9. Reinforced lead-free Brass water port: male 1/2" NPT inlet and outlet

10. Dual O-ring design

11. Anti-Rotation Safety Lock

12. FDA material

13. Capacity ≥ 1320 Gallon/5000L (Water quality varies from place to place)

14. Dimension- 15.4” x 13.3” x 4.92” [391mm x 338mm x 125mm]

Note: The initial filtration system flow rate throughout- 2.64 GPM/10 LPM range at 45 psi/0.31 MPa incoming pressure. The flow rate decreases as the filter does its job and becomes clogged with the trapped impurity. The rate of decrease varies by water quality from place to place. When the flow rate decreases noticeably, it is time to replace the filter to maintain optimal water quality and the best user experience.

For all campers

Reduces lead, cysts, absorbs chlorine, odor in water, and improves taste

Reduces limescale build-up† in water**

P/N: CLM4-CLM-W-WWC-PCL

Chlorine overall percent reduction: >97.5 %*

Lead overall percent reduction: >99.7 %*

Cyst overall percent reduction: >99.99 %*

Filter Replacement Components NSF/ANSI 42/53 certified.

CLM2.X housing NSF/ANSI/CAN 61 certified (CLM4.X is 3 CLM2.X housings connected in series)

†Not performance tested or certified by NSF

*Data from NSF International test reports

** Internal test

Specifications

1. 1-piece 2mm powder-coated steel structural frame

2. 1st stage- PPC filter, 1-micron PP pleated, carbon block composite filter + scale inhibition**

3. 2nd stage- CTO filter, 2-micron, Chlorine, taste & odor removal

4. 3rd stage- LCB filter, 0.65-micron, lead & cyst removal

5. 10" BPA-free clear PET material housing

6. BPA-free PP material filter head

7. Cycle test: 145psi, 100K cycles

8. Burst pressure: 400psi

9. Water port: male 1/2" NPT inlet and outlet

10. Dual O-ring design

11. Anti-Rotation Safety Lock

12. FDA material

13. Capacity ≥ 1320 Gallon/5000L (Water quality varies from place to place)

14. Dimension- 15.4” x 14.2” x 4.92” [391mm x 360mm x 125mm]

Note: The initial filtration system flow rate throughout- 2.64 GPM/10 LPM range at 45 psi/0.31 MPa incoming pressure. The flow rate decreases as the filter does its job and becomes clogged with the trapped impurity. The rate of decrease varies by water quality from place to place. When the flow rate decreases noticeably, it is time to replace the filter to maintain optimal water quality and the best user experience.

For all campers

Reduces lead, cysts, absorbs chlorine, odor in water, and improves taste.

Reduces limescale build-up† in water**

P/N: CLM4-CLM-W-WWC-PCL-KIT

Chlorine overall percent reduction: >97.5 %*

Lead overall percent reduction: >99.7 %*

Cyst overall percent reduction: >99.99 %*

Filter Replacement Components NSF/ANSI 42/53 certified.

CLM2.X housing NSF/ANSI/CAN 61 certified (CLM4.X is 3 CLM2.X housings connected in series)

†Not performance tested or certified by NSF

*Data from NSF International test reports

** Internal test

Specifications

1. 1-piece 2mm powder-coated steel structural frame

2. 1st stage- PPC filter, 1-micron PP pleated, carbon block composite filter + scale inhibition**

3. 2nd stage- CTO filter, 2-micron, Chlorine, taste & odor removal

4. 3rd stage- LCB filter, 0.65-micron, lead & cyst removal

5. 10" BPA-free clear PET material housing

6. BPA-free PP material filter head

7. Cycle test: 145psi, 100K cycles

8. Burst pressure: 400psi

9. Lead-free Brass water port: Swivel female 3/4" GHT inlet, and fixed male 3/4" GHT outlet

10. Dual O-ring design

11. Anti-Rotation Safety Lock

12. FDA material

13. Capacity ≥ 1320 Gallon/5000L (Water quality varies from place to place)

14. Dimension- 15.4” x 14.2” x 4.92” [391mm x 360mm x 125mm]

15. Includes the carrying bag.

Note: The initial filtration system flow rate throughout- 2.64 GPM/10 LPM range at 45 psi/0.31 MPa incoming pressure. The flow rate decreases as the filter does its job and becomes clogged with the trapped impurity. The rate of decrease varies by water quality from place to place. When the flow rate decreases noticeably, it is time to replace the filter to maintain optimal water quality and the best user experience.

For all campers
Annual Supply Bundle Bundle (Total 3 sets 3-Stage Replacement Filter includes PPCx3, CTOx3, LCBx3)

Reduces lead, cysts, absorbs chlorine, odor in water, and improves taste.

Reduces limescale build-up† in water**

P/N: CLM4-CLM-W-WWC-PCL-KITBDL1

Chlorine overall percent reduction: >97.5 %*

Lead overall percent reduction: >99.7 %*

Cyst overall percent reduction: >99.99 %*

Filter Replacement Components NSF/ANSI 42/53 certified

CLM2.X housing NSF/ANSI/CAN 61 certified (CLM4.X is 3 CLM2.X housings connected in series)

†Not performance tested or certified by NSF

*Data from NSF International test reports

** Internal test

Specifications

1. 1-piece 2mm powder-coated steel structural frame

2. 1st stage- PPC filter, 1-micron PP pleated, carbon block composite filter + scale inhibition**

3. 2nd stage- CTO filter, 2-micron, Chlorine, taste & odor removal

4. 3rd stage- LCB filter, 0.65-micron, lead & cyst removal

5. 10" clear BPA-free PET material housing

6. BPA-free PP material filter head

7. Cycle test: 145psi, 100K cycles

8. Burst pressure: 400psi

9. Reinforced lead-free Brass water port: Swivel female 3/4" GHT inlet, and fixed male 3/4" GHT outlet

10. Dual O-ring design

11. Anti-Rotation Safety Lock

12. FDA material

13. Capacity ≥ 1320 Gallon/5000L (Water quality varies from place to place)

14. Dimension- 15.4” x 14.2” x 4.92” [391mm x 360mm x 125mm]

15. Includes the carrying bag.

Note: The initial filtration system flow rate throughout- 2.64 GPM/10 LPM range at 45 psi/0.31 MPa incoming pressure. The flow rate decreases as the filter does its job and becomes clogged with the trapped impurity. The rate of decrease varies by water quality from place to place. When the flow rate decreases noticeably, it is time to replace the filter to maintain optimal water quality and the best user experience.

For CLM Products | CLM2.X | series and compatible models

Reduces visible impurities†, residual chlorine, odors, and improves taste.

Reduces limescale build-up† in water**

Rating: 1-micron nominal

Each pack of PPC replacement filter packing includes PPCx1

PPC P/N: CLMX-CLM-W-XXX-P

NSF/ANSI 42 certified

†Not performance tested or certified by NSF

** Internal test

Specifications

1. Gray color end caps

2. Micron rating:  1-micron nominal

3. Scale inhibition efficiency ≥ 90%@3L/min, 250ppm hardness spiked water**

4. Turbidity removal rate ≥60%@3L/min, 15NTU A2 powder spiked water**

5. Residual chlorine removal rate ≥95%@3L/min, 2±0.2ppm residual chlorine spiked water**

6. Capacity ≥ 5000L (Water quality varies from place to place)

For CLM Products | CLM2.X | series and compatible models

Absorbs chlorine, odor in water, and improves taste.

Rating: 2-micron nominal

Each pack of CTO replacement filter packing includes CTOx1

CTO P/N: CLMX-XX-X-XXX-C

NSF/ANSI 42 certified

** Internal test

Specifications

1. Teal color end caps

2. Micron rating:  2 micron nominal

3. Initial residual chlorine removal rate ≥ 98%**

4. Capacity ≥ 1320 Gallon/5000L (Water quality varies from place to place)

For CLM Products | CLM2.X | series and compatible models

Reduces lead, cysts, absorbs chlorine, odor in water, and improves taste.

Rating: 0.65-micron nominal

Each pack of LCB replacement filter packing includes LCBx1

LCB P/N: CLMX-CLM-W-XXX-L

NSF/ANSI 42, 53 certified

** Internal test

Specifications

1. Blue color end caps

2. Micron rating: 0.65 micron nominal

3. Residual chlorine removal rate ≥95%@2L/min 2±0.2ppm residual chlorine spiked water**

4. Lead removal rate≥99%@2L/min, 150ppb lead spiked solution**

5. Turbidity removal rate ≥ 90%@3L/min, 15NTU A2 powder spiked water**

6. Cyst removal rate ≥99%**

7. Capacity ≥ 1320 Gallon/5000L (Water quality varies from place to place)

For CLM Products | CLM3.X | CLM4.X | series and compatible models.

Reduces lead, cysts, absorbs chlorine, odor in water, and improves taste

Reduces limescale build-up† in water**

Each set of 3-Stage Replacement Filter includes PPCx1, CTOx1, LCBx1

PPC P/N: CLMX-CLM-W-XXX-P

CTO P/N: CLMX-CLM-W-XXX-C

LCB P/N: CLMX-CLM-W-XXX-L

NSF/ANSI 42, 53 certified

†Not performance tested or certified by NSF

*Data from NSF International test reports

** Internal test

Specifications

1. PPC micron rating:  1-micron nominal

2. CTO micron rating:  2-micron nominal

3. LCB micron rating:  0.65-micron nominal

4. Chlorine overall percent reduction: >97.5 %*

5. Lead overall percent reduction: >99.7 %*

6. Cyst overall percent reduction: >99.99 %*

7. Capacity ≥ 1320 Gallon/5000L (Water quality varies from place to place)
